3D modeling cloud collaboration platform

Project detail

• Symptoms: Review and feedback spanned multiple tools, making shared context and decisions harder to carry across teams and vendors.
• Root causes: Collaboration depended on exports and workarounds instead of shared context anchored to the model.
• Constraints: Large-model performance limits and strict security and IP protection requirements.
• Result: Collaboration needed to stay connected at the moments of review and feedback when decisions were being made.

Connecting collaboration around complex 3D systems

Engineering teams relied on complex 3D assemblies to make critical decisions, but collaboration broke down during review and feedback.

Teams shared large files through existing tools, emailed screenshots, or relied on meetings to explain changes that were hard to reference later. Feedback lived outside the model context, forcing people to translate intent across tools and viewpoints.

The opportunity was to support faster decisions and stronger shared understanding across teams and vendors.

Collaboration around the model

Most existing tools were optimized for individual authoring. Shared decisions happened through separate meetings, screenshots, and documents.Opening full assemblies could take significant time even on high-end machines, and stakeholders who only needed to review still had to load entire models.

Vendors and non-engineering partners often worked with more limited access, which made it harder to keep 3D context intact across handoffs. The product opportunity was to bring those collaborators into the same review flow.

Creating shared context

The initial request centered on collaboration features. Discovery showed the deeper issue was shared context. Teams needed a way to build shared understanding around complex systems while allowing people to keep the tools, workflows, and performance profiles that fit their role.

Any solution had to reconcile:

• High-fidelity 3D complexity with lightweight interaction
• Fast iteration with enterprise-grade security
• Individual workflows with shared decision-making

What was at stake

A shared collaboration layer could speed decisions, strengthen shared understanding, and give teams more deliberate control over sensitive data.

Making secure collaboration practical was central to enterprise adoption, speed, and trust.

Grounding the challenge in real work

Early discovery focused on building a shared understanding of how engineers actually collaborated around 3D models.

I worked closely with product, engineering, and an experienced design engineer SME to synthesize domain knowledge across end-to-end design and manufacturing workflows, collaboration handoffs between OEMs and suppliers, and the realities of security, performance, and tooling in enterprise environments.

This work was less about validating a single hypothesis and more about building confidence before committing to a specific interaction model.

Design sprint as a synthesis engine

To move from ambiguity to direction, I facilitated a focused design sprint with product, engineering, and the SME.

The sprint helped the team:

This created alignment across disciplines and established a concrete starting point for experience design grounded in domain reality rather than assumption.

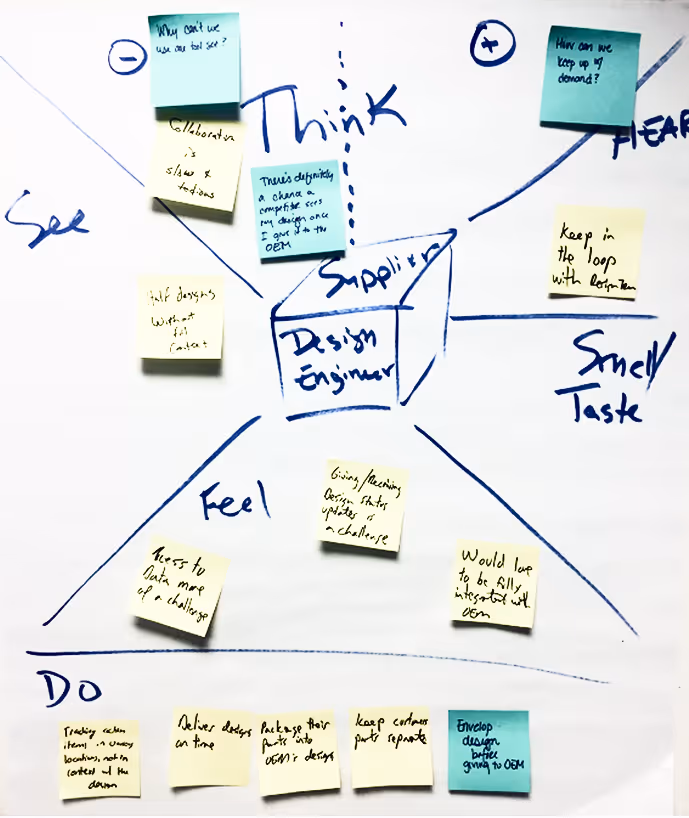

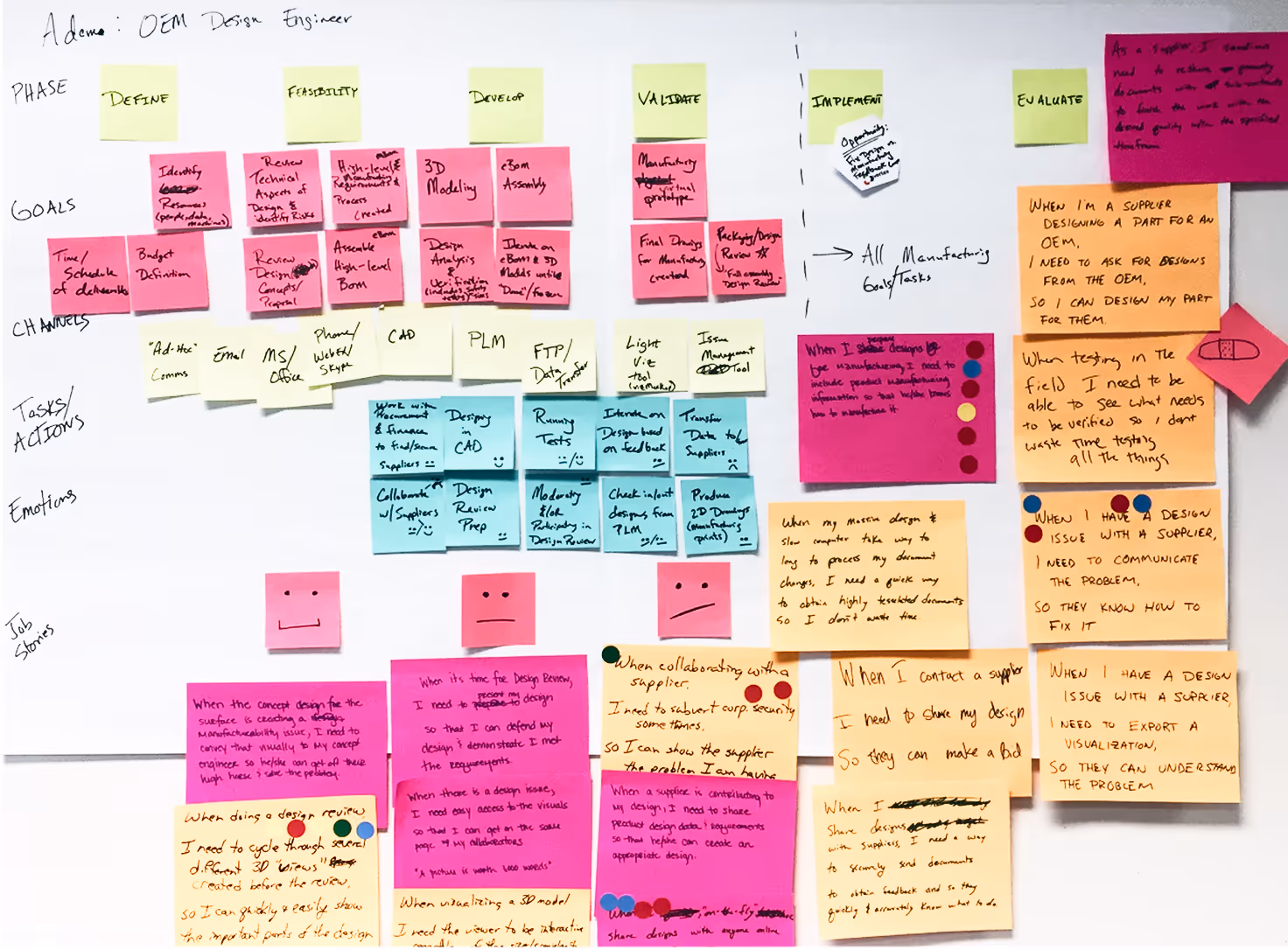

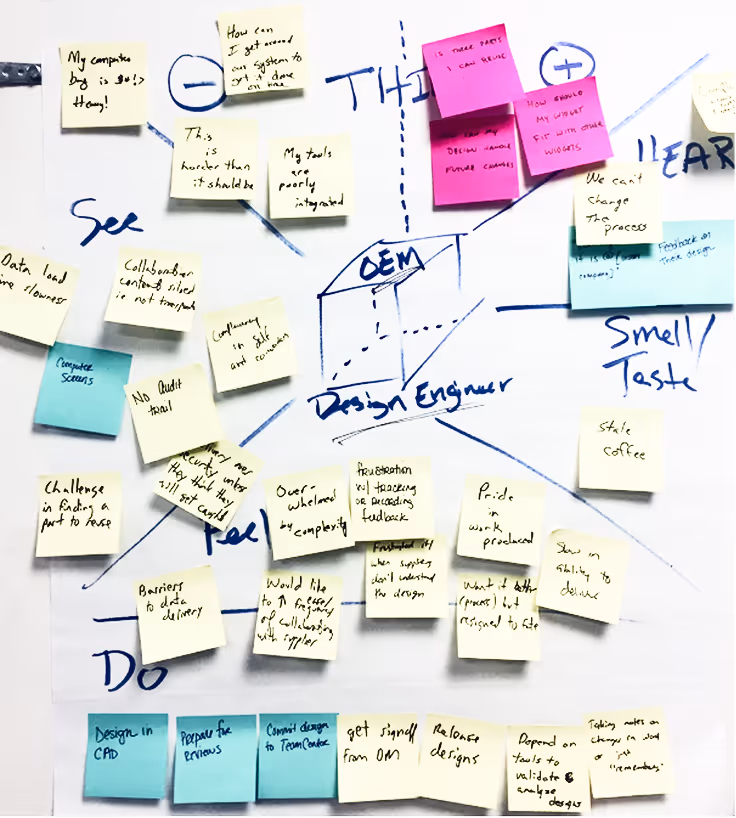

• Map OEM and supplier perspectives separately
• Identify where collaboration broke down across review, feedback, and iteration

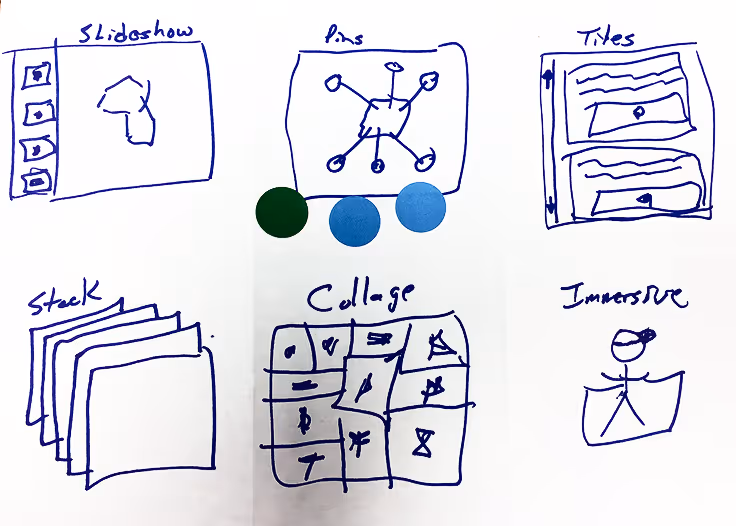

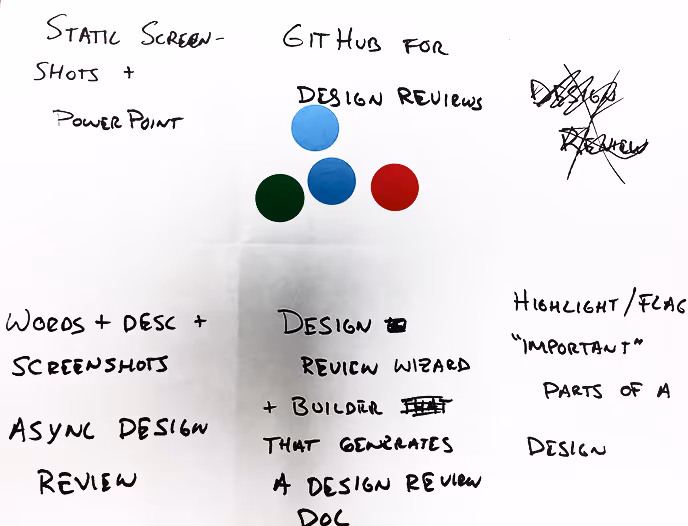

• Explore multiple collaboration concepts quickly

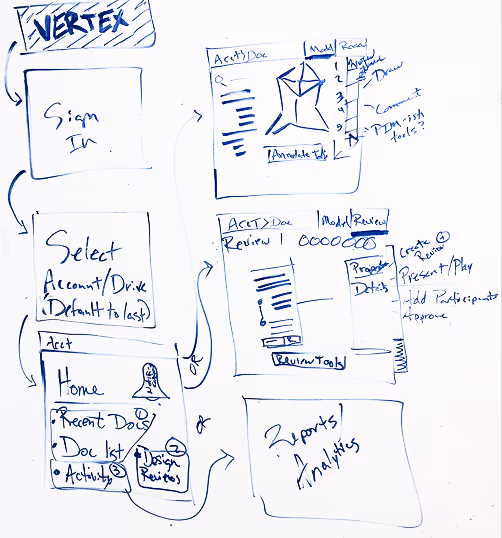

• Translate the strongest directions into low-fidelity flows for discussion and refinement

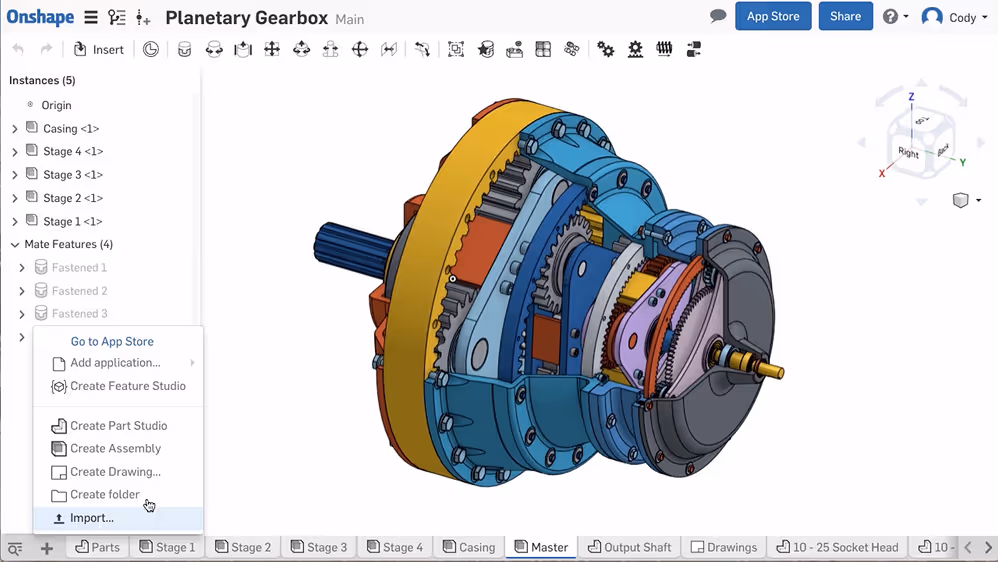

Learning from existing tools and paradigms

In parallel, I reviewed both direct CAD tools and adjacent collaboration paradigms to understand where existing solutions succeeded and where they fell short.

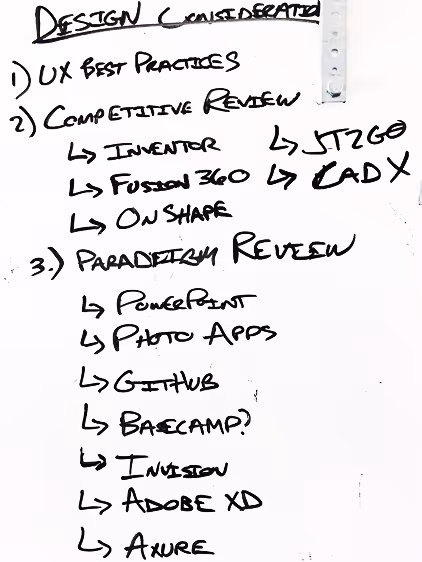

This included CAD platforms such as Inventor, Fusion 360, Onshape, JT2Go, and CADX, alongside adjacent paradigms such as PowerPoint, photo markup tools, GitHub, Basecamp, and InVision / Axure.

We kept full CAD authoring out of scope and focused on the collaboration layer: where work broke down, which familiar patterns already worked, and which could be adapted safely.

The pattern was consistent: collaboration happened around the model through screenshots, static documents, and separate conversations. The opportunity was to bring those into a shared workspace around the model.

What we learned

Across discovery, several insights became clear:

These findings directly shaped the interaction model and platform direction that followed.

• Collaboration broke down during review and feedback
• Security and performance shaped behavior as much as usability
• Different roles needed different views of the same model
• Existing tools centered individual workflows while collaboration context stayed spread across the surrounding process

Reframing the work

Discovery showed the core need was shared context during review and feedback.

Teams often exported models, captured static screenshots, and reconciled feedback across separate tools. Keeping that feedback connected to the 3D context could make decisions faster and collaboration clearer, especially with external suppliers.

The strategy was to anchor collaboration to the model so discussion, context, and decisions stayed connected to the work. The goal became designing a system that supported shared understanding across roles, disciplines, and access boundaries.

• Goal: Keep discussion, context, and decisions anchored to the model.
• Inputs: Large CAD assemblies, enterprise security constraints.
• Core interactions: View, isolate, measure, annotate, compare.
• Collaboration layer: Comments, mentions, review states.
• Governance: Permissions, sharing, auditability.

Why 3D collaboration is uniquely hard

Collaboration in 3D is mediated through 2D inputs, while meaning lives in a spatial environment that changes with camera angle, zoom, and orientation. There is no single stable surface, so feedback can lose intent over time.

The challenge is compounded by role differences across engineers, reviewers, and external partners. Collaboration patterns therefore had to bind 2D input to 3D context while remaining understandable across audiences and over time.

Strategic intent

The strategy was guided by four goals:

These goals provided clear guardrails for experience design and prevented the solution from drifting toward familiar but ineffective patterns.

• Keep context attached to feedback Comments and annotations needed to stay anchored to specific views, parts, or moments in the model.
• Support meaningful collaboration with role-aware protection for sensitive IP Suppliers and external partners needed meaningful participation with access scoped to the data relevant to their work.
• Balance power with approachability Engineers needed depth and control, while other collaborators needed lightweight ways to engage with the model.
• Enable both synchronous and asynchronous workflows Teams needed to collaborate live when necessary and leave structured feedback that could be reviewed later.

Intentional tradeoffs

Working within a stealth startup environment required focus and restraint.

The strategy prioritized:

That gave the team enough structure to keep building while technical and organizational constraints were still changing.

• Core collaboration workflows over exhaustive feature parity
• Flexible interaction models over rigid processes
• A clear interaction system before deeper edge-case optimization

Project detail

With the strategy defined, the focus shifted to designing collaboration around complex 3D assemblies while keeping performance, security, and clarity intact.

I focused on a common interaction model for exploration, discussion, and decision-making across roles and contexts. That gave the team patterns it could reuse as new workflows were added.

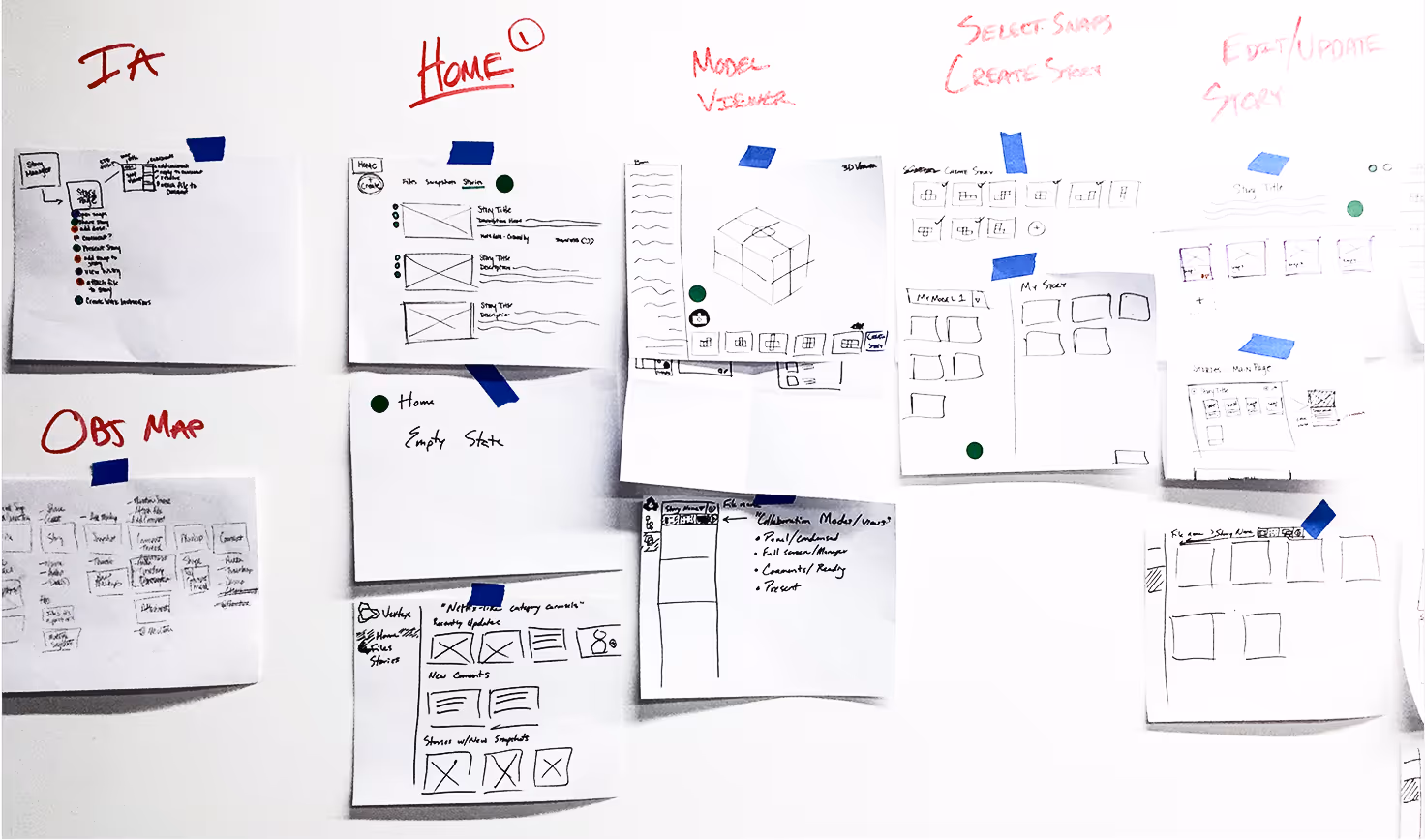

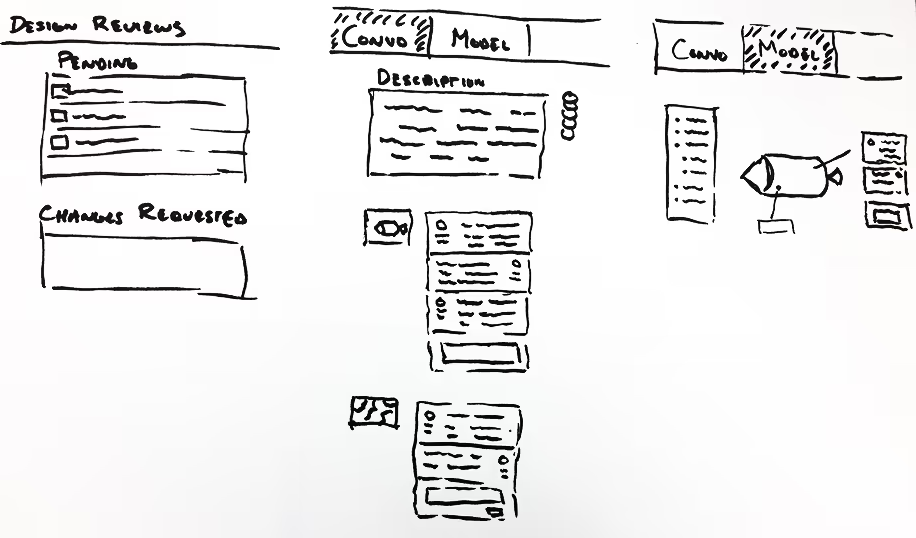

Designing collaborative workflows

Early design work centered on how users collaborated around models and how they inspected them.

The experience was structured around three core activities:

This kept interaction decisions grounded in real workflows and away from tool-centric patterns.

• Explore: Navigate and inspect large assemblies efficiently
• Collaborate: Share, comment, annotate, and discuss specific parts in context
• Present: Capture, sequence, and communicate insights directly around the model

Interaction model and system structure

To support these workflows, I designed a system that separated model interaction, commentary, and narrative storytelling while keeping them tightly connected.

Key design decisions included:

This allowed teams to move fluidly between exploration and communication while keeping the work and its context together.

• A persistent 3D model viewer as the shared source of truth
• Contextual commenting anchored to parts, views, or snapshots
• Lightweight markup tools that did not alter the underlying model
• A clear distinction between working sessions and curated stories

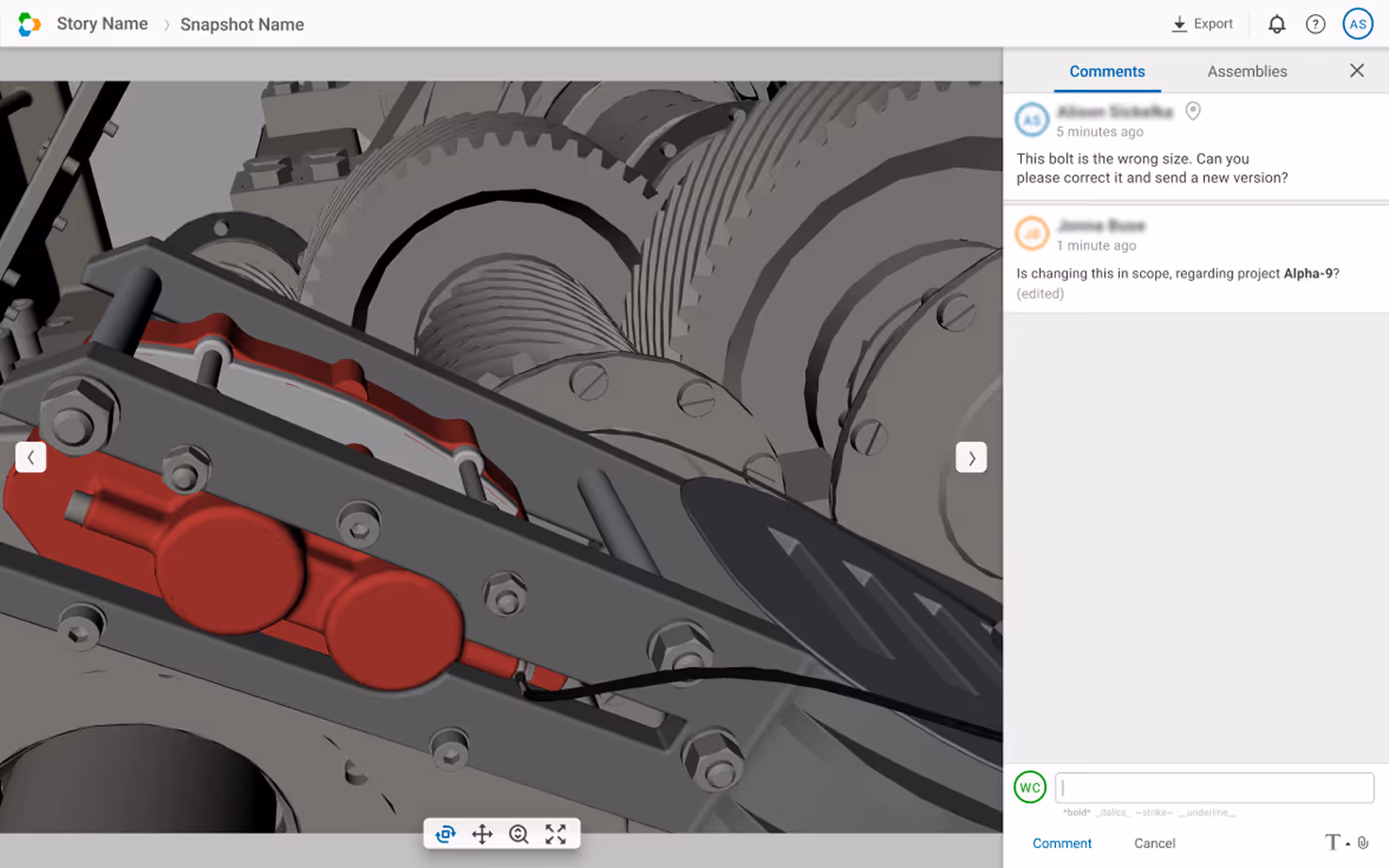

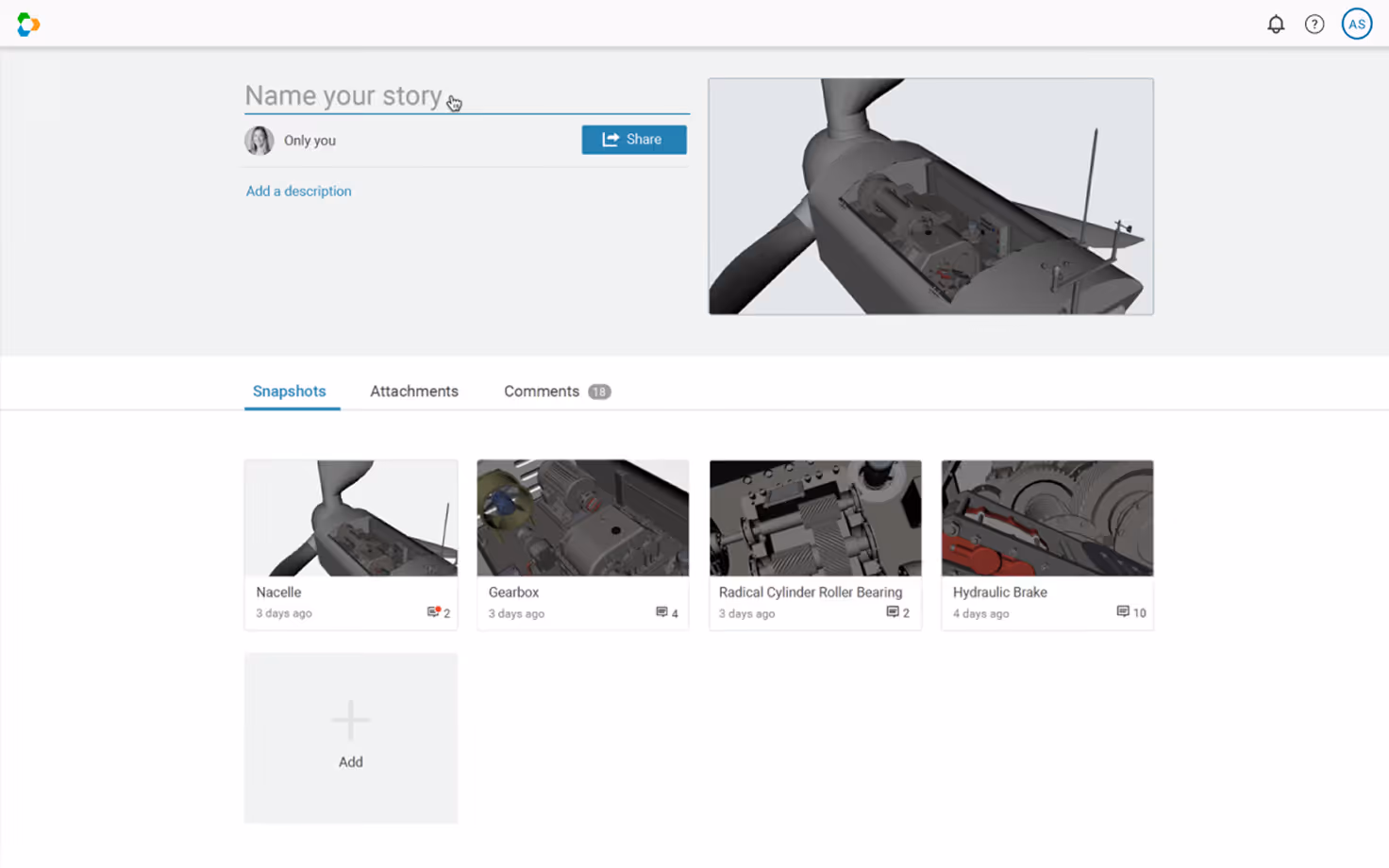

Stories as a shared communication layer

One of the most important concepts was Stories, a way to curate and communicate decisions.

Stories allowed users to:

This reduced reliance on external tools and made collaboration more accessible to non-CAD specialists while preserving engineering accuracy.

• Capture snapshots of relevant model states
• Annotate and draw directly on those views
• Sequence snapshots into a narrative
• Discuss changes asynchronously through lightweight snapshot views

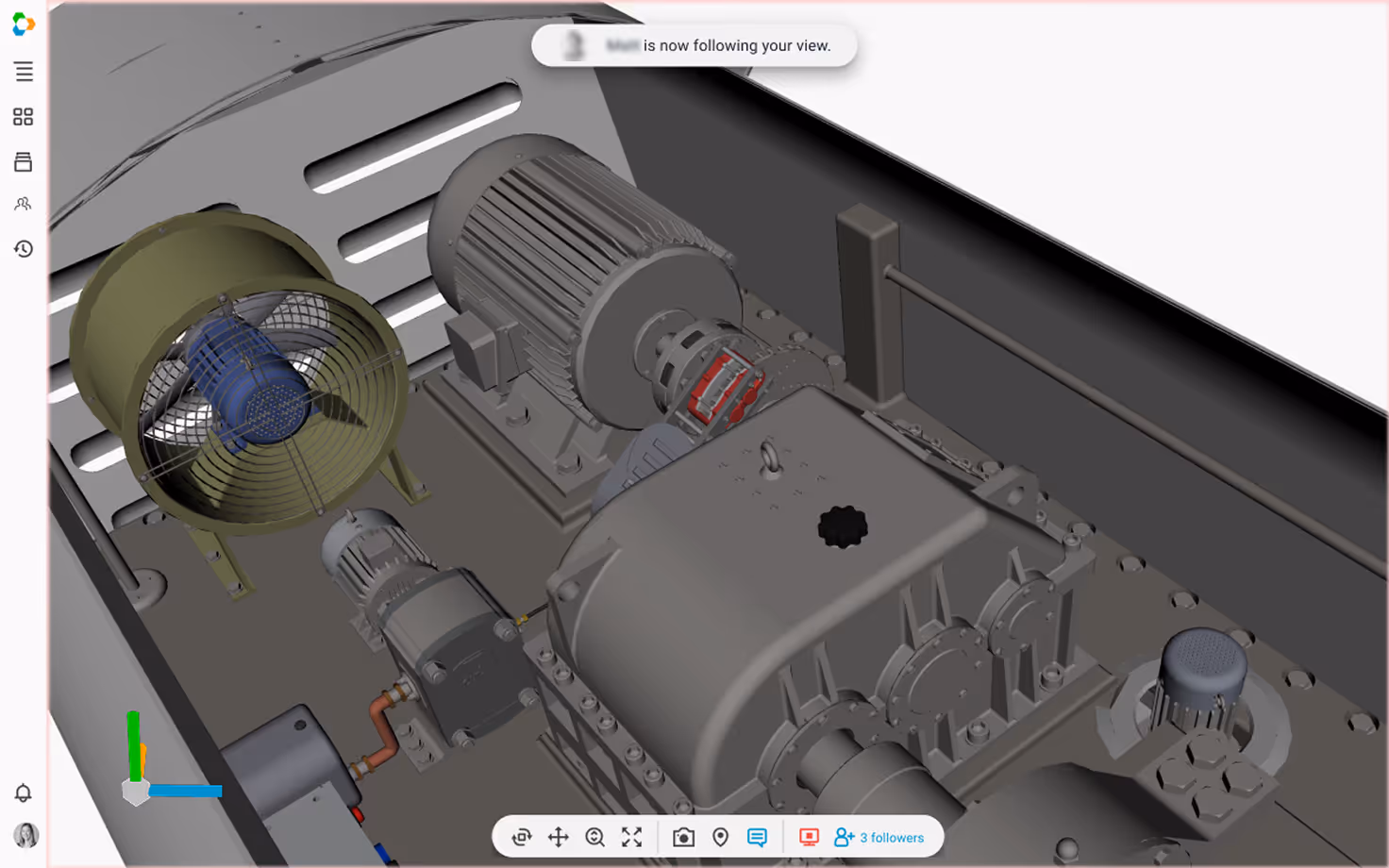

Supporting real-time collaboration

To support synchronous work, the experience included lightweight collaboration features that mirrored how teams already worked together.

These included:

The goal was to make model-based collaboration faster and more precise while letting meeting tools handle the meeting itself.

Throughout execution, I iterated closely with product and engineering to balance usability, performance, and feasibility.

This included:

The result was an experience that remained responsive and understandable under heavy technical constraints.

• Inviting users directly into a shared model
• Following another participant’s view during walkthroughs
• Screen sharing for live reviews directly from the shared workspace
• Refining interaction density to avoid visual overload
• Adjusting tool placement based on usage patterns
• Stress-testing workflows with large, complex assemblies

Testing the model with the team and practitioners

With the core interaction model, collaboration workflows, and system structure in place, validation focused on how well the experience aligned with real-world engineering collaboration needs and fit existing design processes.

Validation occurred across two tracks: internal stakeholder review and external directional exposure.

Internal validation: product, engineering, and SME review

Concepts and flows were reviewed iteratively with product leadership, engineering partners, and a senior design engineer SME with deep CAD and manufacturing experience.

These reviews focused on:

Feedback confirmed that the shared-context approach, including snapshots, stories, markup, and role-aware collaboration, mapped well to existing workflows while making collaboration easier than file-based handoffs and separate tools. Validation refined the details and confirmed the core interaction model.

• Whether the collaboration model reflected real design-review behavior
• Feasibility of real-time and asynchronous workflows
• Alignment with CAD/PLM constraints and enterprise security requirements
• Clarity of roles, permissions, and ownership in shared models

External validation: directional exposure via mHUB

To test early concepts outside the immediate team, selected designs were shared in facilitated sessions at mHUB with design and engineering practitioners experienced in complex systems and collaborative workflows.

These sessions provided directional validation for:

Feedback was largely affirming, with minor refinements to labeling, affordances, and interaction clarity while the core system structure remained intact.

• Stories as a shared communication layer
• Snapshots for focused, contextual feedback
• Real-time collaboration and follow-view interactions
• The balance between visual fidelity and lightweight participation

What validation confirmed

The reviews confirmed:

Together, the feedback supported continuing with the core collaboration model.

mHUB sessions with design and engineering practitioners provided directional feedback that tested the collaboration model while the startup was still operating in stealth.

• Core review and feedback patterns aligned with familiar engineering workflows
• Roles, permissions, and model context were understandable during review
• Stories, snapshots, and markup kept feedback anchored to the 3D model and its state
• Most changes were refinements to labels, affordances, and interaction clarity

Customer & business impact

• Enabled teams to collaborate on complex 3D models while moving beyond file-based workflows
• Made reviewing, annotating, and iterating easier across roles with different levels of technical expertise
• Improved clarity and confidence in shared decision-making by making model state, context, and intent more visible to collaborators

Platform & organizational impact

• Established reusable interaction patterns for real-time collaboration that could support future features within a coherent experience
• Reduced ambiguity across product, design, and engineering by aligning teams around shared system models and interaction rules
• Improved delivery velocity by identifying constraints early and designing within technical realities rather than around them

What I took from the work

Designing collaboration systems requires treating shared understanding as a first-class design outcome.

The work needed a clear visual language supported by:

The project taught me to define shared context, system state, and tradeoffs early. Those decisions mattered more as the product and the number of collaborators grew.

• Defining clear interaction contracts between users and the system
• Making system state explicit so interpretation stays consistent across handoffs
• Balancing user needs, performance constraints, engineering feasibility, and edge-case behavior
